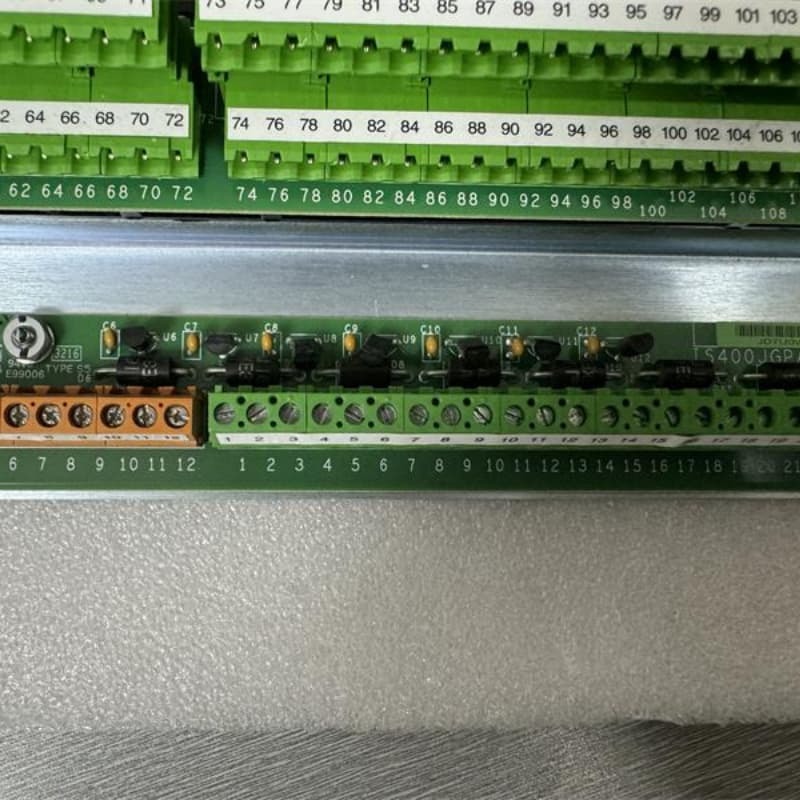

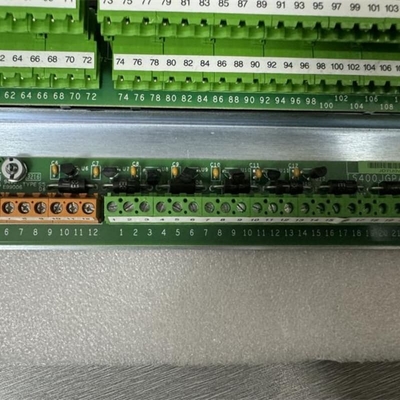

GE IS400JGPAG1ACD Analog I/O Board for Mark VI Turbine Control

The GE IS400JGPAG1ACD is an Analog Input/Output (I/O) Board, a critical component of industrial control systems—part of GE's Mark Series used in turbine and power generation setups. As a dual-function analog board, it bridges field sensors and actuators with central controllers, handling both analog signal acquisition (input) and control signal output.

• Dual Analog Functionality: Enables accurate conversion of real-world analog inputs to digital data for controllers, and converts digital control commands to analog outputs for actuators—critical for regulating turbine parameters.
• Industrial Durability: Built to withstand extreme conditions, typical -30 to 65°C operating temperature, vibration, and electrical noise with robust hardware. Surface-mount technology enhances reliability and resistance to wear.
• Signal Integrity: Incorporates design features to maintain signal accuracy, with likely support for standard analog ranges and low lead resistance for consistent performance.
• Compatibility & Integration: Seamlessly pairs with GE's Mark Series controllers and I/O modules, fitting into existing control architectures. Labeled terminals simplify wiring, while diagnostic capabilities aid quick troubleshooting.
• Practical Design: Compact form factor suits control cabinet installations, supporting efficient space utilization. Ideal for mission-critical applications like gas/steam turbine control, where precise analog I/O is vital for safety and efficiency.
