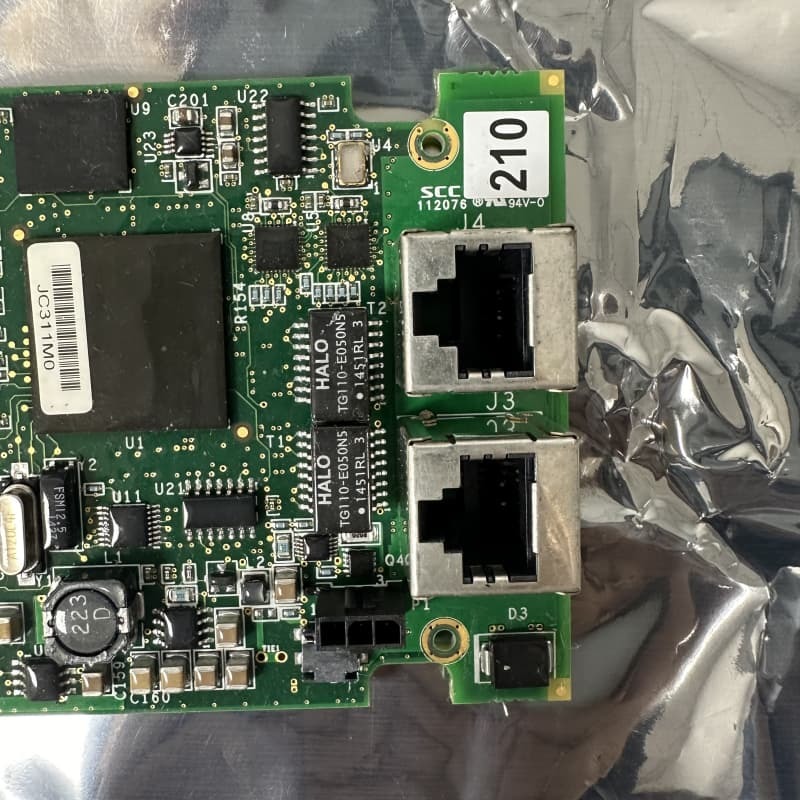

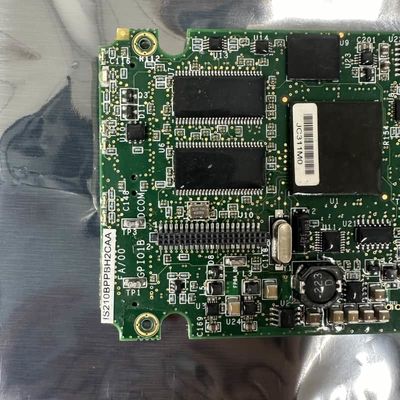

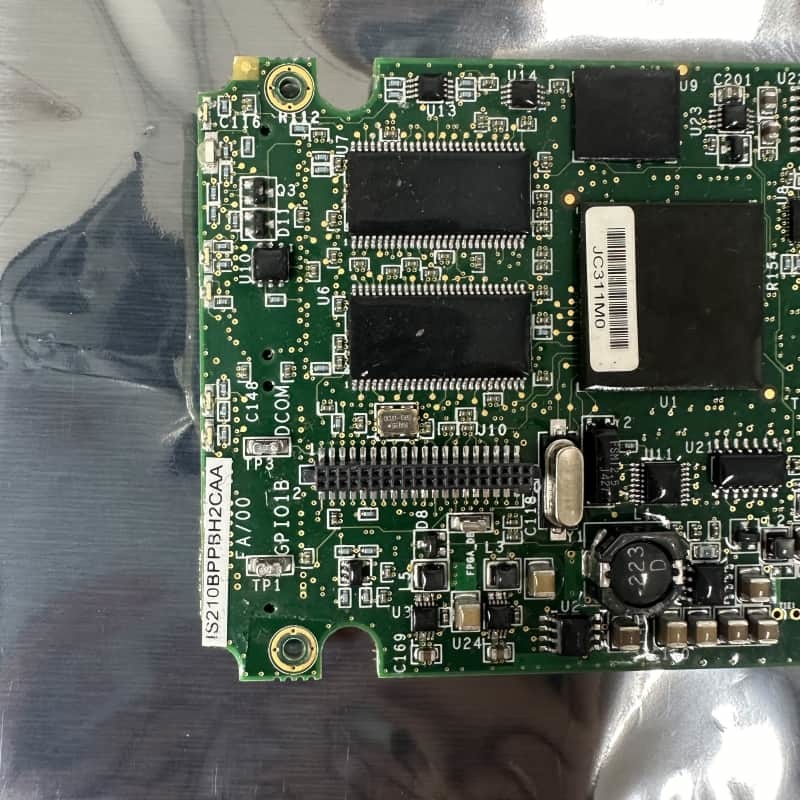

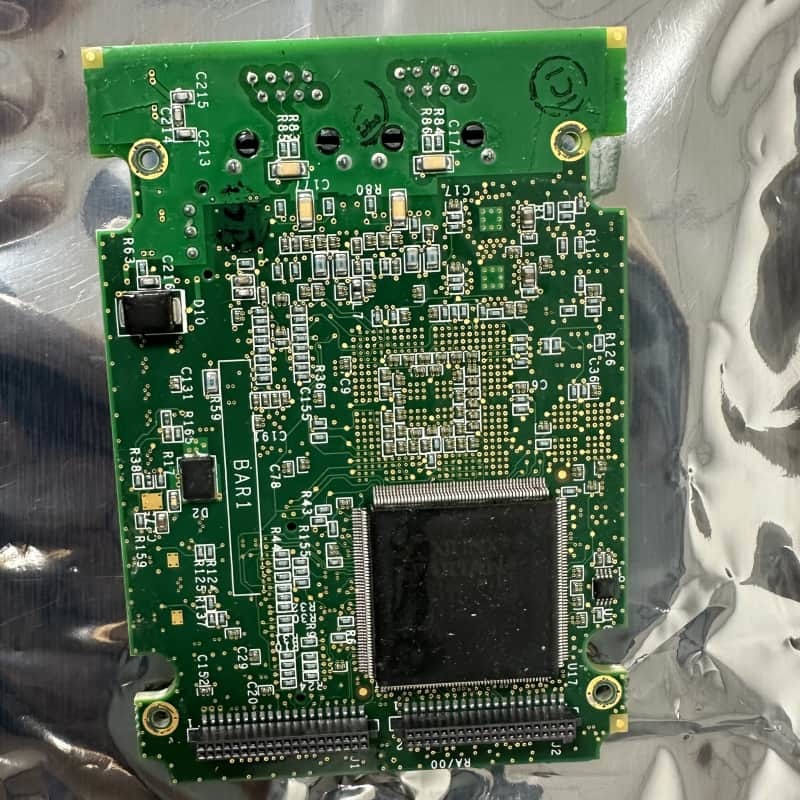

GE IS210BPPBH2CAA Printed Circuit Board 100mm x 200mm for Mark VI

GE Mark VI IS210BPPBH2CAA Printed Circuit Board

Product Details:

The GE IS210BPPBH2CAA is a printed circuit board (PCB) designed for GE’s Mark VI Turbine Control System, compatible with both steam and gas turbine prime movers. As a core component, it typically mounts in the system’s main Control Module and interfaces with other boards via a VME rack.

Equipped with eight female plug connectors (2–18 pins) and six metal oxide varistors, it supports signal transmission and electrical protection. It works with a Microsoft Windows NT-based Human Machine Interface (HMI) that offers graphics displays, client/server functions, and a Control System Toolbox for maintenance.

In Triple Modular Redundant (TMR) setups, three processor cards enable it to execute turbine application software, ensuring reliable data exchange with other VME-rack-mounted boards. The module also integrates software maintenance tools to support system upkeep.

Key Features:
Turbine Compatibility: Designed for Mark VI systems, supporting both steam and gas turbine prime movers, enhancing versatility across power generation applications.

Hardware Configuration: Features eight female plug connectors (2–18 pins) for inter-board connectivity and six metal oxide varistors for electrical surge/noise protection, boosting durability.

Module Integration: Mounts in the main Control Module and works with VME racks, enabling seamless integration into Mark VI’s modular architecture.

HMI & Software Support: Paired with a Windows NT HMI and includes maintenance tools for efficient system monitoring and upkeep.

TMR System Adaptability: In TMR setups, uses three processor cards to run turbine application software, ensuring redundant, reliable operation critical for turbine control.
