GE DS200UPLAG1BEA LAN Power Supply Board with 200mm Height 100mm Width and 2kg Weight for Turbine Control

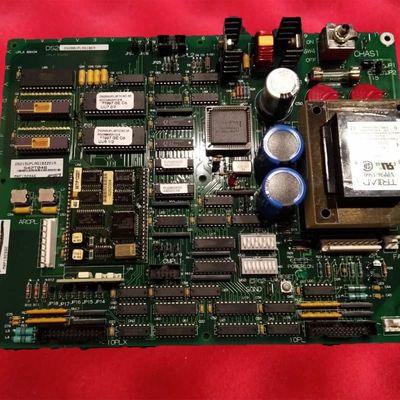

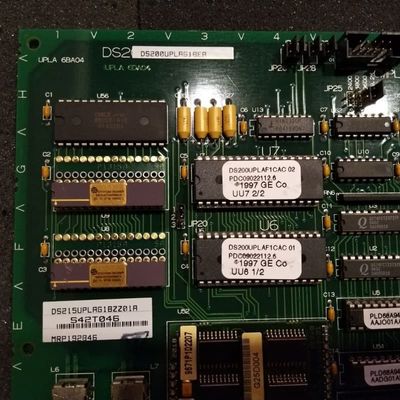

GE DS200UPLAG1BEA LAN Power Supply Board

Product Details:

The GE DS200UPLAG1BEA is a vital LAN Power Supply Board for the Mark V Series turbine control drive assembly, distinguished as a revised variant of its parent board, the DS200UPLAG1. It incorporates three key revisions: two functional revisions (rated B and D) and one artwork revision (rated A), which enhance its performance and compatibility within the Mark V system. Designed to meet GE’s industrial standards for turbine control, the board relies on a comprehensive set of hardware components to deliver stable power and enable control signal transmission, supporting the overall reliability of gas and steam turbine operations.​

Key Features​:
Revised Product Design: As an upgraded version of the DS200UPLAG1, it includes three targeted revisions (B, D, A) — two focused on functional improvements to optimize power supply performance, and one artwork revision to refine board layout, ensuring better component integration and signal integrity.​

Diverse Hardware Configuration: It is equipped with essential components for power management and signal handling, including two 26-pin connectors (for control signal transmission via ribbon cables with plastic connectors), 1 fuse (for overcurrent protection), 1 toggle switch, 1 reset button, and 1 8-pin connector. The ribbon cable design, with multiple fine wires, enables efficient and secure signal transfer between the board and other system components.​

Customizable Jumpers & Switches: Featuring 17 jumpers and 16 switches, the board supports site-specific configuration. While some are factory-set for testing only, others allow on-site adjustments to tailor the board to operational needs. A critical best practice during replacement is to replicate the jumper/switch settings of the old board to ensure seamless system integration.​

Informative Product Number: Despite limited GE instructional manuals, the DS200UPLAG1BDA part number encodes key details: normal assembly type, domestic manufacturing location, “UPLA” functional identifier (aligning with its LAN power supply role), Mark V Series Group 1 classification, and the three specific revisions — serving as a reliable reference for hardware specifications.​
